iMX8M Nano uCOM

Perfect trade-off between cost and performance for multimedia applications
LOADING
  • Heterogeneous Multicore Processor (HMP)
  • Hardware accelerator for 3D graphics
  • 4x Cortex-A53 @ 1.5 GHz & Cortex-M7 @ 750 MHz

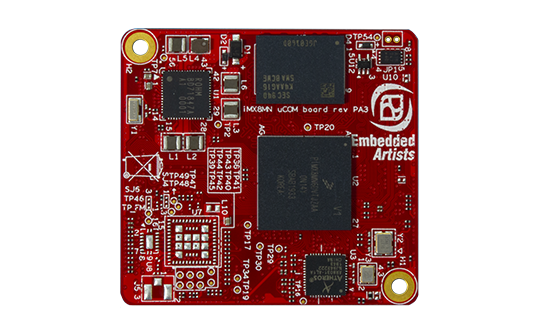

Image of iMX8M Nano uCOM

This application processor module is optimized for industrial control and multimedia applications, and comes with up to 4x A53 and 1x M7 cores.

Advanced Multimedia

The iMX8M Nano uCOM Board features high-end graphic capabilities with both 3D and 2D GPUs. Video decoding and encoding can be done directly by the processor cores.

With MIPI DSI display output, MIPI CSI camera inputs, flexible audio interfaces and comprehensive communication features, the i.MX 8M Nano is ideal for multimedia applications.

Heterogeneous Multicore Processing (HMP)

The i.MX 8M Nano processor comes with up to 4x Cortex-A53 cores and one Cortex-M7 core. This combination of different cores allows a feature rich OS, like Linux, to run on the Cortex-A cores while a Real-Time OS such as FreeRTOS can run on the Cortex-M7 core.
Get more  information about HMP.

Power Optimized Design

Combining the processor with DDR4 memory and Rohm’s efficient BD71847AMWV PMIC results in a very low power module.
The HMP architecture can reduce the power even more by letting the Cortex-A53 cores sleep until needed. The Cortex-M7 can wake them up on demand.

Ultra compact form factor, 42×45 mm, using the proven Hirose DF40C connectors.

NXP Technology

The module is based on NXP’s energy efficient i.MX 8M Nano processor which has up to 4x Cortex-A53 cores capable at running up to 1.5 GHz and one Cortex-M7 core capable at running up to 750 MHz.

Temperature Range

The iMX8M Nano uCOM Board is available in industrial and commercial temperature ranges, -40 to +85 / 0 to 70 degrees Celsius, respectively. The industrial (temperature range) version is suitable for always-on applications.

CPU Details
CPU4x Cortex-A53 @ 1.5 GHz, Cortex-M7 @ 750 MHz
RAM1 GByte DDR4 2400 MT/s 16-bit databus
Flash8 GByte eMMC
Multimedia
Graphics OutputMIPI-DSI
Hardware 2D/3D GraphicGC7000UL, OpenCL 1.2 and Vulkan, OpenGL ES 1.1/2.0/3.0
Hardware Video-
Graphics inputMIPI CSI
Audio5x SAI, 8x PDM, ASRC, SPDIF
Connectivity
Ethernet10/100/1000 Mbps
USB1x USB 2.0 OTG
Wi-FiOptional Murata 1MW
FlexIO-
Serial3x SPI, 4x I2C, 4x UART
ADC / PWMNo / 4 ch
SD2x USDHC
PCIe-
Serial ATA-
Physical
Temperature0 to 70°C or -40 to 85°C
Size42 x 45 mm
Connector2x DF40C-100, 2x DF40C-40
Product Classification and Status
Integration board; Sampling
