- Dual-core Cortex-M7/M4 @ 1000/400 MHz
- 2D vector graphics with support for Open VG 1.1
- On-board Wi-Fi/BT options
This is a dual-core Arm® Cortex®-M based crossover MCU for applications where you want to combine the usability and real-time processing of a microcontroller with the high performance and multimedia functionality of an application processor!
Real time processing and high-speed performance
The i.MX RT1176 is one of the highest performing Cortex-M7/M4 solution delivering 6468 CoreMarks (when running core at 1000 MHz). In addition to the high-speed performance it provides fast real-time responsiveness and offer several low power modes.
This processor is a great upgrade option when the current microcontroller design no longer offers sufficient performance and there are reasons to not fully transfer into the Linux universe with an application processor.
Multimedia functionalities
The i.MX RT1176 has the most comprehensive multimedia functionality among our microcontroller modules including great audio, 2D vector graphics core (Open VG 1.1), pixel processing and camera sensor.
Wide range of connectivity options
There are currently the following on-board Wi-Fi/BT options avilable (others on request):
- Murata’s 1XK (LBEE5CJ1XK) module, based on NXP’s IW416 chipset. It is a dual-band Wi-Fi 802.11a/b/g/n + Bluetooth 5.2 module.
- Murata’s 1ZM (LBEE5QD1ZM) module, based on NXP’s 88W8987 chipset. It is a dual-band Wi-Fi 802.11a/b/g/n/ac + Bluetooth 5.1 module.
There is also a wide range of advanced off-board connectivity options with other Murata Wi-Fi and Bluetooth modules.
Temperature Range

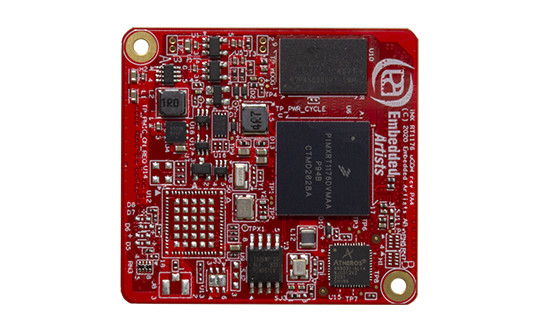

Our iMX RT1176 uCOM board is available in commercial / industrial temperature range, 0 to +70 / -40 to +85 degrees Celsius. The industrial (temperature range) version is suitable for always-on applications.
Do you want to know more?
| CPU Details | |
|---|---|
| CPU | Cortex-M7/M4 @ up to 1000/400 MHz |
| RAM | Internal SRAM: 2 MByte, SDRAM: 32 MByte |
| Flash | 16 MByte external QSPI |
| Multimedia | |
|---|---|
| Graphics Output | MIPI-DSI |
| Hardware 2D/3D Graphic | OpenVG 1.1, Pixel Processing Pipeline |
| Hardware Video | SW only |
| Graphics input | MIPI CSI, Parallel CSI |
| Audio | 5x SAI, DMIC, SPDIF |
| Connectivity | |
|---|---|
| Ethernet | Dual 10/100/1000 Mbps with one on-board Gigabit Eth-PHY |
| USB | 2x HS USB 2.0 OTG |
| Wi-Fi | Yes 1XK or 1ZM Murata module (mounting option) |
| FlexIO | 2 blocks |
| Serial | 12x UART, 3x CAN, 6x I2C, 6x SPI |
| ADC / PWM | 12-bit ADC/DAC / 4x PWM |
| SD | 2x SD3.0 |
| PCIe | - |
| Serial ATA | - |
| Physical | |
|---|---|
| Temperature | 0 to 70°C or -40 to 85°C |
| Size | 42 x 45 mm |
| Connector | 2x DF40C-100, 2x DF40C-40 |
| Product Classification and Status | |
|---|---|
| Integration board; Volume | |
| Flyers and specifications | |
|---|---|
| iMX RT1176 uCOM Board Flyer | |
| iMX RT1176-32 uCOM Datasheet | |
| Generic uCOM board 3D-models | |
| iMX RT1176 uCOM Pin Multiplexing | |
