LPC4088 QuickStart Board

LOADING
  • Cortex-M4 @ 120 MHz
  • mbed enabled board
  • Drag-and-drop programming or embedded debugger
Image of LPC4088 QuickStart Board

Embedded Artists' LPC4088 QuickStart Board is an easy to use ARM Cortex-M4 rapid prototyping board in a standard through hole DIP package (44-pin), targeted at high-performance as well as low-power applications

Not just a piece of hardware

  • The module hardware, which is a professional quality hardware designed for integration and simplicity-of-use.
  • Mbed OS – open source C/C++ microcontroller software platform designed for a suitable level of hardware abstraction to simplify microcontroller programming.
  • Mbed Hardware Development Kit (HDK) – interface design that provides simple USB drag-n-drop programming and CMSIS-DAP debug interface for the LPC4088 microcontroller
  • Large community with forums and documentation.

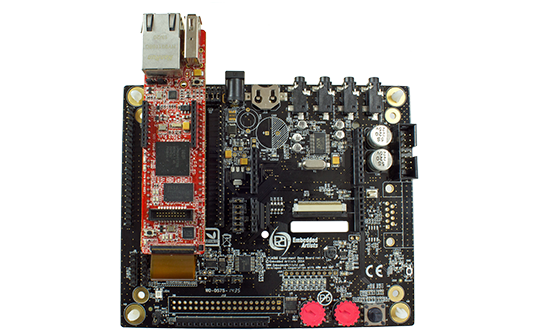

LPC4088 Experiment Bundle

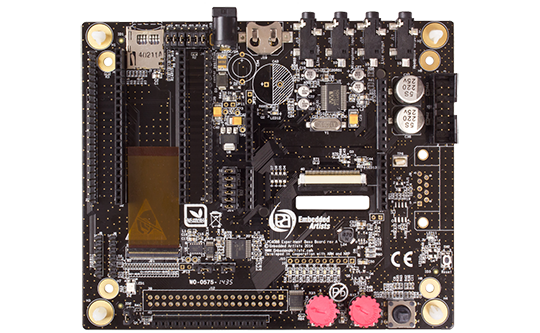

The LPC4088 QuickStart board and the [Experiment base board] form the LPC4088 Experiment Bundle. This bundle contains a lot of experiment options, example code and projects!

The LPC4088 Experiment Bundle is also used as base for the Arm Embedded Systems Education Kit.

CPU Details
CPUCortex-M4 @ 120 MHz
RAM32 MByte SDRAM, 96 KByte internal SRAM
Flash512 KByte internal flash, 8 MByte QSPI
Multimedia
Graphics OutputParallel RGB
Hardware 2D/3D GraphicNo
Hardware VideoSW only
Graphics inputNo
AudioI2S
Connectivity
Ethernet10/100 Mbps
USB2 x FS USB 2.0 OTG
Wi-FiNo
FlexIONo
Serial2x CAN, 3x I2C, 3x SPI, 5x UART
ADC / PWM8 ch (12-bit) / 2 ch
SDMCI
PCIe-
Serial ATA-
Physical
Temperature-40 to 85°C
Size101 x 28 mm
Connector2x22 pin rows 100 mil
Other features
Proper ESD protection on communication interfaces
CMSIS-DAP Interface On-board (debug interface functions)
Supported by the mbed SDK and online tools
Supported by professional tools and middleware
Industrial temperature specified (-40 to +85 degrees Celsius)
20 position SDW/Trace connector (ARM standard debug connector)
61 pos 0.3 mm pitch FPC connector for display expansion
20 pos XBee compatible connector for RF module add-on
Product Classification and Status
Integration board; Volume
Flyers and specifications
Hardware information
LPC4088_QuickStart_Board.zip
