iMX8M COM

High-end powerful module for multimedia applications
LOADING
  • Heterogeneous Multicore Processor (HMP)
  • 4K video decoding
  • 4x Cortex-A53 @ 1.5 GHz & Cortex-M4 @ 266 MHz
Image of iMX8M COM

This application processor module is optimized for advanced multimedia applications, incl. 4K video decoding, and comes with up to 4 cores.

Mature product

We do not recommend this product for new designs. Consider using the iMX8M Mini uCOM or iMX93 uCOM instead.

Advanced Multimedia

The iMX8M COM Board features high-end graphic capabilities with both 3D and 2D engines and hardware accelerator for 4K video decoding.

Together with HDMI and MIPI DSI display outputs, MIPI CSI camera inputs, flexible audio interfaces and comprehensive communication features, the i.MX 8M is ideal for advanced multimedia applications.

Heterogeneous Multicore Processing (HMP)

The i.MX 8M processor comes with up to 4x Cortex-A53 cores and one Cortex-M4 core. This combination of different cores allows a feature rich OS, like Linux, to run on the Cortex-A cores while a Real-Time OS such as FreeRTOS can run on the Cortex-M4 core.
Get more  information about HMP.

Power Optimized Design

Combining the processor with LPDDR4 memory and Rohm’s efficient BD71837MWV PMIC results in a very low power module.
The HMP architecture can reduce the power even more by letting the Cortex-A53 cores sleep until needed. The Cortex-M4 can wake them up on demand.

Compact form factor, 82×50 mm, using the proven MXM3 connector.

NXP Technology

The module is based on NXP’s energy efficient i.MX 8M processor which has up to 4x Cortex-A53 cores capable at running up to 1.5 GHz and one Cortex-M4 core capable at running up to 266 MHz.

Temperature Range

The iMX8M COM Board is available in industrial and commercial temperature ranges, -40 to +85 / 0 to 70 degrees Celsius, respectively. The industrial (temperature range) version is suitable for always-on applications.

Longevity

Fully supported on NXP’s 10 and 15-year longevity program.

CPU Details
CPU4x Cortex-A53 @ 1.5 GHz, Cortex-M4 @ 266 MHz
RAM1 GByte LPDDR4 3200 MT/s 32-bit databus
Flash8 GByte eMMC
Multimedia
Graphics OutputHDMI, MIPI-DSI
Hardware 2D/3D GraphicGC7000Lite, OpenCL 1.2 and Vulkan, OpenGL ES 1.1/2.0/3.0/3.1
Hardware VideoDecode: 4Kp60
Graphics input2x MIPI CSI
Audio5x SAI, SPDIF
Connectivity
Ethernet10/100/1000 Mbps
USB2x USB 3.0/2.0 OTG
Wi-FiNo
FlexIONo
Serial3x SPI, 4x I2C, 4x UART
ADC / PWMNo / 4 ch
SD1x USDHC
PCIe2x PCIe Gen 2
Serial ATANo
Physical
Temperature0 to 70°C or -40 to 85°C
Size82 x 50 mm

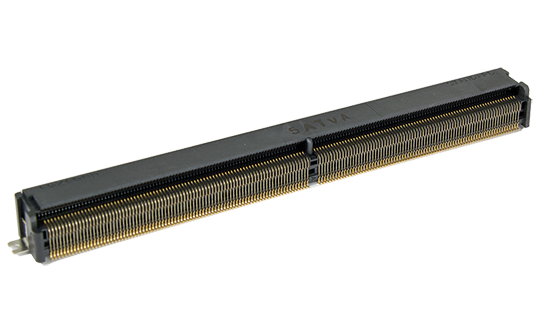

Connector314 pos MXM3
Product Classification and Status
Integration board; Mature
