- High-performing Cortex-M7, up to 600 MHz
- Fast real-time response with ultra-low latency
- On-board 1ZM Wi-Fi/BT option
This is a crossover option for applications where you want to combine the usability and real-time processing of a microcontroller with the high performance and multimedia functionality of an application processor.
Real time processing and high-speed performance
The i.MX RT1064 is one of the highest performing Cortex-M7 solution delivering 3020 CoreMarks (when running core at 600 MHz). In addition to the high-speed performance it provides fast real-time responsiveness and offer several low power modes.
This is a great option when microcontrollers no longer offers sufficient performance and there are reasons to not fully transfer into the Linux universe with an application processor.
Multimedia functionalities
The i.MX RT1064 has the most comprehensive multimedia functionality among our microcontroller modules including great audio, 2D video accelerator, pixel processing and camera sensor.
Wide range of connectivity options
There is an on-board Wi-Fi/BT option with Murata’s 1ZM (LBEE5QD1ZM) module, based on NXP 88W8987 chipset. It is a dual-band Wi-Fi 802.11a/b/g/n/ac + Bluetooth 5.1 module.
There is also a wide range of advanced off-board connectivity options with other Murata Wi-Fi and Bluetooth modules.
Temperature Range

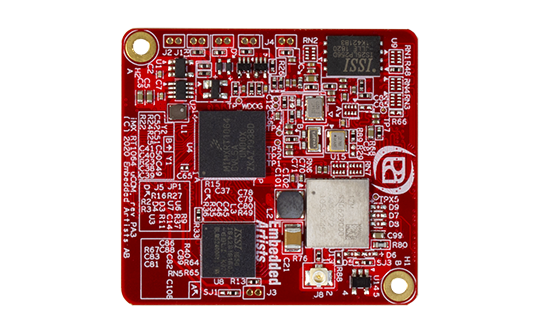

Our iMX RT1064 uCOM board is available in commercial / industrial temperature range, 0 to +70 / -40 to +85 degrees Celsius. The industrial (temperature range) version is suitable for always-on applications.
Available in December 2020
The iMX RT1064 uCOM modules will be available in mid-December 2020 and supported with an iMX RT1064 uCOM Developer’s Kit. Contact Embedded Artists if you want early access.
| CPU Details | |
|---|---|
| CPU | Cortex-M7 @ up to 600 MHz |
| RAM | Internal SRAM: 1 MByte, SDRAM: 32 MByte |
| Flash | 4 MByte on-chip QSPI |
| Multimedia | |
|---|---|
| Graphics Output | Parallel RGB |
| Hardware 2D/3D Graphic | Pixel Processing Pipeline |
| Hardware Video | SW only |
| Graphics input | Parallel CSI |
| Audio | 3x SAI, SPDIF |
| Connectivity | |
|---|---|
| Ethernet | 10/100 Mbps MAC (requires PHY on carrier board) |
| USB | 2x HS USB 2.0 OTG |
| Wi-Fi | Yes 1ZM (optional) |
| FlexIO | 2 blocks |
| Serial | 2x CAN, 4x I2C, 4x SPI, 8x UART |
| ADC / PWM | 8 ch (12-bit) / 16 ch |
| SD | 2x USDHC |
| PCIe | - |
| Serial ATA | - |
| Physical | |
|---|---|
| Temperature | 0 to 70°C or -40 to 85°C |
| Size | 42 x 45 mm |
| Connector | 2x DF40C-100 |
| Product Classification and Status | |
|---|---|
| Integration board; Sampling | |
| Flyers and specifications | |
|---|---|
| iMXRT1064 uCOM Board Flyer | |
| Conformity | |
|---|---|
| Product compliance declarations | |
| Longevity and PCN | |
