iMX RT1062 OEM

Combining the best of microcontrollers and application processors
LOADING
  • High-performing Cortex-M7 @ 600 MHz
  • Fast real-time response with ultra-low latency
  • Multimedia and advanced connectivity

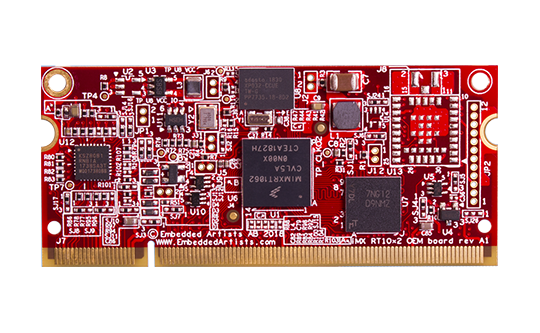

Image of iMX RT1062 OEM

This is a crossover option for applications where you want to combine the usability and real-time processing of a microcontroller with the high performance and multimedia functionality of an application processor.

Real time processing and high-speed performance

The i.MX RT1062 is the highest performing Cortex-M7 solution delivering 3036 CoreMarks, which is 13 times better than the LPC1788 microcontroller. In addition to the high-speed performance it provides fast real-time responsiveness.-

This is a great option when microcontrollers no longer offers sufficient performance and there are reasons to not fully transfer into the Linux universe with an application processor.

Multimedia functionalities

The i.MX RT1062 has the most comprehensive multimedia functionality among our microcontroller modules including great audio, 2D video accelerator, pixel processing and camera sensor.

Wide range of connectivity options

The module also offer low power consumption and a wide range of advanced connectivity options such as Wi-Fi and Bluetooth.

Temperature Range

The iMX RT1062 OEM board is available in industrial temperature range, -40 to +85 degrees Celsius. The industrial (temperature range) version is suitable for always-on applications.

CPU Details
CPUCortex-M7 @ 600 MHz
RAMInternal SRAM: 1 MByte, SDRAM: 32 MByte
Flash4 MByte OctalSPI EcoXiP flash
Multimedia
Graphics OutputParallel RGB
Hardware 2D/3D GraphicPixel Processing Pipeline
Hardware VideoSW only
Graphics inputParallel CSI
Audio3x SAI, SPDIF
Connectivity
Ethernet10/100 Mbps
USB2x HS USB 2.0 OTG
Wi-FiYes (optional)
FlexIO2 blocks
Serial2x CAN, 4x I2C, 4x SPI, 8x UART
ADC / PWM8 ch (12-bit) / 16 ch
SD2x USDHC
PCIe-
Serial ATA-
Physical
Temperature-40 to 85°C
Size68 x 30 mm
Connector200 pos SODIMM
Product Classification and Status
Integration board; Volume
