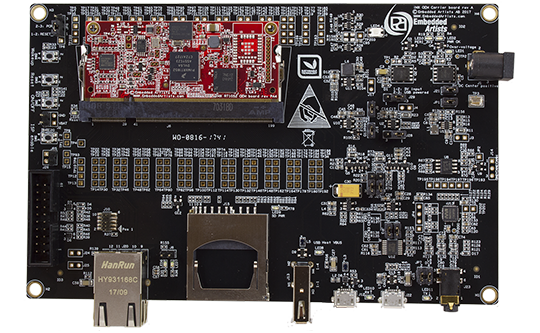

- Evaluate the iMX RT1052 OEM board
- All relevant interfaces are available
- 4.3 inch LCD included
This Kit has been Discontinued
The iMX RT1052 Developer’s Kit has been replaced by the iMX RT1062 Developer’s Kit.
The main difference between the iMX RT1052 and the iMX RT1062 is that the iMX RT1062 has 1 MB of SRAM while the iMX RT1052 has 0.5 MB SRAM.
All development and prototyping can be done on the iMX RT1062 Developer’s Kit even if you plan on using the iMX RT1052 in your final product.
| Connectors and interfaces | |
|---|---|
| SODIMM200, 200-pos connector, 1.8V keying | |
| 10/100 Mbps Ethernet RJ45 connector | |
| USB OTG interface with ESD protection | |
| USB Host interface with ESD protection | |
| SD memory card connector | |
| CAN transceiver with ESD protection and termination | |
| UART-to-USB FTDI bridge for UART interface with ESD protection | |
| Debug interface with 2x5 pos 50 mil pitch Cortex debug connector and 2x10 pos 100 mil pitch ARM debug connector, with ESD protection | |
| Parallel 16-bit RGB display interface and touch panel interface for 4.3 inch 480x272px LCD | |
| Expansion connectors for accessing OEM board signals | |
| Audio codec with 3.5mm audio jack connector (for microphone input and headphone output) and option for external speakers | |
| Power | |
|---|---|
| 5V DC supply voltage, either via micro-AB USB connector or 2.1mm power jack connector | |
| External VBAT powering possible | |
| Reverse polarity protection | |
| Internal 3.3V/2A DC/DC buck converter | |
| Dimensions | |
|---|---|
| 165 x 104 mm | |
| Four 4.3mm holes for mounting and grounding | |
| Other | |
|---|---|
| On/Off, Reset, ISP Enable and Wakup pushbuttons | |
| Input current measurement | |
| Product Classification | |
|---|---|
| Evaluation board | |
Note: Specifications for the OEM board is available on the iMX RT1052 OEM board page.
| Flyers and specifications | |
|---|---|
| iMX OEM Carrier board schematics revA | |
| Documentation and guides | |
|---|---|
| iMX RT1052 Developer's Kit User's Guide | |
| iMX RT1052/1062 Developer's Kit Program Development Guide | |
