- Connectivity through on-board Wi-Fi
- Software to access Amazon Web Services (AWS)
- Cortex-M4 @ 180 MHz
This microcontroller module is designed for applications that require online and cloud access. It also includes software that enables your application to communicate with AWS IoT Services.
Connectivity and Amazon
The Wi-Fi hardware in this module allows your application to go online.
Included with this module is optional software to access the wide range of functionalities in Amazon Web Services (AWS). It’s ideal and easily integrated if your backend system is based on AWS.
Start prototyping

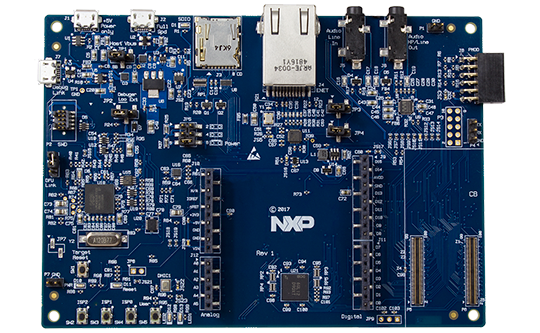

Use either the IoT Module Baseboard or the IoT Mini Prototype Board when prototyping with LPC54018 IoT Module.
NXP Technology
The module is based on NXP’s LPC54018 microcontroller which has a Cortex-M4 core capable at running up to 180 MHz.
NXP’s product page for the LPC54018 IoT Module.
Temperature Range
The LPC54018 IoT module is available in commercial temperature range, 0 to +70 Celsius.
| CPU Details | |
|---|---|
| CPU | Cortex-M4 @ 180 MHz |
| RAM | 360 KByte interna SRAM |
| Flash | 16 MByte external QSPI |
| Multimedia | |
|---|---|
| Graphics Output | Parallel RGB |
| Hardware 2D/3D Graphic | No |
| Hardware Video | SW only |
| Graphics input | No |
| Audio | 2x DMIC, 2x Flexcomm-I2S |
| Connectivity | |
|---|---|
| Ethernet | 10/100 Mbps |
| USB | 1x FS USB 2.0 Host/Device, 1x HS USB 2.0 Host/Device |
| Wi-Fi | Longsys GT1216 |
| FlexIO | No |
| Serial | 11x Flexcomm, 2x CAN |
| ADC / PWM | 12 ch (12-bit) / 5 ch |
| SD | SD/MMC/SDIO |
| PCIe | - |
| Serial ATA | - |
| Physical | |
|---|---|
| Temperature | 0 to 70°C |
| Size | 57 x 31 mm |
| Connector | Dual DF40C-100 |
| Product Classification and Status | |
|---|---|
| Evaluation board; (this is an NXP product: OM40007) | |
| Flyers and specifications | |
|---|---|
| User Manual for LPC54018 IoT Module (provided by NXP) | |
| Design database (provided by NXP) | |
| Documentation and guides | |
|---|---|
| Getting Started with Amazon FreeRTOS | |
| NXP's product page for the LPC54018 IoT module | |
| Software resources | |
|---|---|
| LPC54018 IoT Module design file Cadance/Altium | |
