LPC-Link2

LOADING
  • Stand-alone debug adapter
  • CMSIS-DAP by Arm
  • J-Link by Segger
Image of LPC-Link2

LPC-Link2 is an extensible, stand-alone debug adapter that can be configured to support various development tools and IDEs by downloadable firmwares.

The board is supported by the MCUXpresso IDE and all development environments that supports the J-Link and CMSIS-DAP interface.

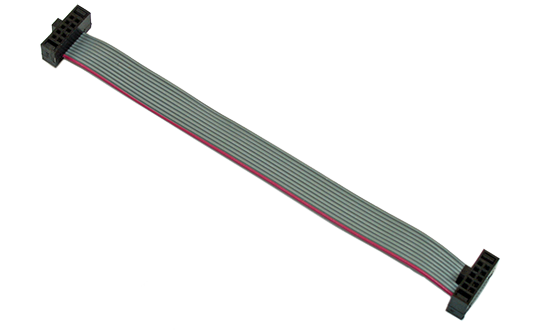

This product is delivered with a 10-pos IDC Ribbon Cable. Note that an adapter is needed to connect to the older 2×10-pos 100 mil pitch ARM debug connectors.

Obsolete

This product is obsolete and has been replaced by MCU-Link which exists in two versions.

LPC-Link2
SWD/JTAG interface voltage1.2V - 5.5V supported
Dimensions84 x 37 mm
PoweringVia USB cable from PC
Connectorsstandard 10-pin Cortex debug connector (note: 50 mil pitch connector)
Connectors
standard 10-pin Cortex debug connector (note: 50 mil pitch connector)
20-pin Cortex trace connector (note: 50 mil pitch connector)
analog expansion header
digital expansion header
serial expansion header
Supported development tools
Compatible with the MCUXpresso IDE - LPC-Link2 is auto-detected by MCUXpresso.
Compatible with tools/IDEs that support the Segger J-Link via downloadable firmware image
Compatible with tools/IDEs that support CMSIS-DAP by ARM via downloadable firmware image
Product Classification
Evaluation board
