Versatile and powerful addition to your lab bench!
  • 11 channel Logic Analyzer
  • 2 channel Oscilloscope
  • Digital and analog signal generartor
Image of LabTool

LabTool is an add-on board to LPC-Link 2 creating a Logic Analyzer and Oscilloscope

What is included?

Highlighted features

  • 11 channel logic analyzer (up to 100Msamples per second)
  • 2 channel oscilloscope (up to 60 Msamples per second, 6MHz BW)
  • 11 channel digital signal generator (up to 80 Msamples per second)
  • 2 channel analog signal generator (40kHz BW)

Software features

  • One shot and continuous sampling
  • Sorting and moving of signals
  • SPI, I2C, UART signal interpreters
  • Project settings can be saved and restored
  • Collected data can be exported
  • Four cursors available to help interpret captured data
  • Open source software
  • Prepared for running under Linux and MAC
Digital inputs
11 channel logic analyzer
without trigger: 100 Msps (1-4 ch), 50 Msps (5-8 ch), 20 Msps (9-11 ch).
with trigger: 100 Msps (1-2 ch), 80 Msps (3-4 ch), 40 Msps (5-8 ch), 20 Msps (9-11 ch).
Falling/rising edge triggers with logical OR between channels.
3.3V logic level as default but 2.4-5.5V supported via DIO_VCC.
Analog inputs
2 channel oscilloscope
60 Msps (1 ch) and 30 Msps (2 ch) sampling.
+-25V input range, 1 Mohm input impedance.
AC/DC control.

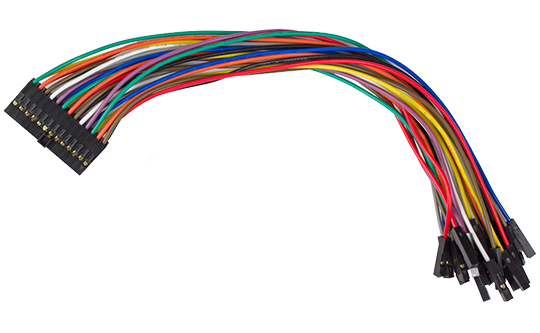

BNC connector and flexible cables via 26-pos IDC connector.
6 MHz BW (3 MHz for 20mV/div range and up to 12 MHz on 0.2V/div and 5V/div range).
Digital outputs
11 channel digital signal generator
80 Msp
3.3V logic level
Analog outputs
2 channel analog signal generator
+-5V, 40 kHz BW
Sine, square and triangle waveforms
83 x 90 mm
5.0V via mini-B USB connector
26-pos IDC connector for digial and analog I/O
Two BNC connectors
Calibration signals, 1.25V/78mV
Demo signals
Cortex debug connector to on-board LPC812 (2x5 pos)
Cortex debug connector from LPC-Link 2 connectors (2x5 pos)
12 channel demo signal generator (UART, I2C, SPI, counter, PWM) from on-board LPC812.
HW provision for I2C logging (sw not implemented)
Analog calibration, can be done by user
Open source software
