- Wi-Fi 6, 802.11 a/b/g/n/ac/ax 2x2 MU-MIMO
- Bluetooth 5.3 BR/EDR/LE
- PCIe or SDIO interface
- Chipset: NXP 88W9098

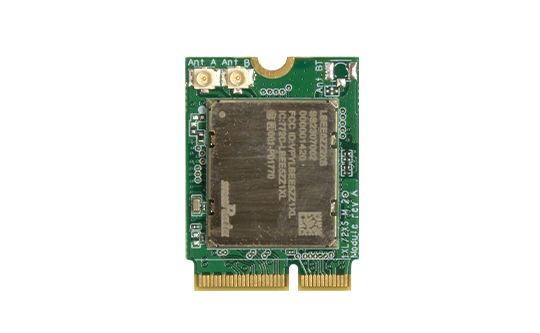

We have partnered with Murata to design the 2XS M.2 module, suitable for evaluation, integration and ease-of-use.
You get started immediately by following our getting started guide:
The 2XL M.2 has two antennas, one for Wi-Fi and a second, shared antenna for Wi-Fi and Bluetooth. Wi-Fi MIMO operation is limited to only the 5GHz band if Bluetooth is active. This limitation is acceptable for most applications.
If Wi-Fi MIMO operation must support both the 2.4GHz and 5GHz bands while Bluetooth is active, there is a version of the module called 1XL M.2. This module has three antennas, two for Wi-Fi and a separate for Bluetooth. The trade-off for Wi-Fi MIMO operation support on both the 2.4GHz and 5GHz bands while Bluetooth is active is an extra antenna compared to the 2XS module.
Our integration guide help you integrate an M.2 module in your next embedded design. It for example contains general information about the M.2 standard and reference schematics.
Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.
For full specification on 2XS module (LBEE5ZZ2XS) see Murata’s 2XS product page and 2XS datasheet.
| Module | |
|---|---|
| Murata module | LBEE5ZZ2XS, also known as Murata 2XS |
| Chipset | NXP 88W9098 |
| WLAN | |
|---|---|
| Standards | 802.11a/b/g/n/ac/ax 2x2 MU-MIMO, Wi-Fi 6 |
| Network | uAP and STA dual mode |
| Frequency | 2.4 GHz & 5 GHz bands |
| Data rates | 11, 54, 144, 300, 866.7, 1200 Mbps |
| Host interface | PCIe or SDIO 3.0 (SDR12@24MHz, SDR25@50MHz, SDR50@100MHz, SDR104@208MHz, DDR50@50MHz) |
| Bluetooth | |
|---|---|
| Standards | 5.3 BR/EDR/LE, 2MPHY |
| Power Class | Class 1 |
| Host interface | 4-wire UART@3MBaud |
| Audio interface | PCM for audio |
| Powering | |
|---|---|
| Supply voltage | 3.3V (3.14-3.46V) |
| Receive mode current (WLAN) | TBD mA typical |
| Transmit mode current (WLAN) | TBD mA typical |
| Mechanical | |
|---|---|
| M.2 standard | Type 2230-D5-EWidth 22 mm, length 30mm, component height 1.5 mm on both sides and E-key connector |
| Measurements | 22x30 mm |
| Weight | 1.5 gram |
| Temperature | |
|---|---|
| -40 to +85 degrees Celsius | |
| Product Classification and Status | |
|---|---|
| Integration board; Sampling | |
| Product Classification and Status | |
|---|---|
| Integration board; Sampling | |
| Flyers and specifications | |
|---|---|
| 1XL / 2XS M.2 Datasheet | |
| LBEE5ZZ2XS Product page at Murata | |
| Generic M.2 module 3D-models | |
| Documentation and guides | |
|---|---|
| Getting started with M.2 modules - iMX 6/7/8/9 | |
| Integration guide | |
