- Wi-Fi 6, 802.11 a/b/g/n/ac/ax 2x2 MU-MIMO
- Bluetooth 5.3 BR/EDR/LE
- PCIe or SDIO 3.0 interface
- Chipset: NXP 88W9098
We have partnered with Murata to design the 1XL M.2 module, suitable for evaluation, integration and ease-of-use.
You get started immediately by following our getting started guide:

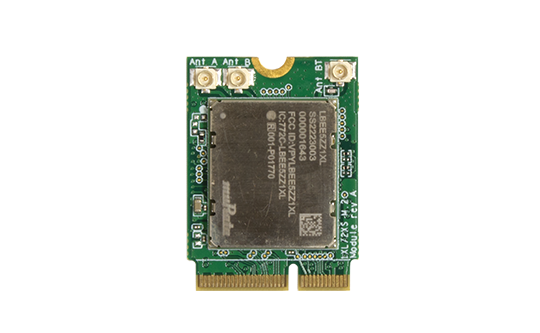

The 1XL M.2 has three antennas, two for Wi-Fi and a separate for Bluetooth. This configuration supports Wi-Fi MIMO operation on both the 2.4GHz and 5GHz bands while Bluetooth is active. There is also version of the module, called 2XS M.2 that has a shared Wi-Fi and Bluetooth antenna, so two antennas in total. The trade-off for saving one antenna is Wi-Fi MIMO operation only on the 5GHz band if Bluetooth is active. This is an acceptable limitation for most applications.
Our integration guide help you integrate an M.2 module in your next embedded design. It for example contains general information about the M.2 standard and reference schematics.
Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.
For full specification on 1XL module (LBEE5ZZ1XL) see Murata’s 1XL product page and 1XL datasheet.
| Module | |
|---|---|
| Murata module | LBEE5ZZ1XL, also known as Murata 1XL |
| Chipset | NXP 88W9098 |
| WLAN | |
|---|---|
| Standards | 802.11a/b/g/n/ac/ax 2x2 MU-MIMO, Wi-Fi 6 |
| Network | uAP and STA dual mode |
| Frequency | 2.4 GHz & 5 GHz bands |
| Data rates | 11, 54, 144, 300, 866.7, 1200 Mbps |
| Host interface | PCIe or SDIO 3.0 (SDR12@24MHz, SDR25@50MHz, SDR50@100MHz, SDR104@208MHz, DDR50@50MHz) |
| Bluetooth | |
|---|---|
| Standards | 5.3 BR/EDR/LE, 2MPHY |
| Power Class | Class 1 |
| Host interface | 4-wire UART@3MBaud |
| Audio interface | PCM for audio |
| Powering | |
|---|---|
| Supply voltage | 3.3V (3.14-3.46V) |
| Receive mode current (WLAN) | TBD mA typical |
| Transmit mode current (WLAN) | TBD mA typical |
| Mechanical | |
|---|---|
| M.2 standard | Type 2230-D5-EWidth 22 mm, length 30mm, component height 1.5 mm on both sides and E-key connector |
| Measurements | 22x30 mm |
| Weight | 1.5 gram |
| Temperature | |
|---|---|
| -40 to +85 degrees Celsius | |
| Product Classification and Status | |
|---|---|
| Integration board; Sampling | |
| Product Classification and Status | |
|---|---|
| Integration board; Sampling | |
| Flyers and specifications | |
|---|---|
| 1XL / 2XS M.2 Datasheet | |
| LBEE5ZZ1XL Product page at Murata | |
| Generic M.2 module 3D-models | |
| Documentation and guides | |
|---|---|
| Getting started with M.2 modules - iMX 6/7/8/9 | |
| M.2 Integration guide | |
