2LL M.2 Module

Dual Band Wi-Fi 6, 802.11a/b/g/n/ac/ax SISO + Bluetooth 5.4 + IEEE802.15.4 Module
LOADING
  • Wi-Fi 6, 802.11 a/b/g/n/ac/ax SISO HE20/MCS9
  • Bluetooth 5.4 BR/EDR/LE
  • IEEE802.15.4
  • SDIO 3.0 and USB2.0 interface
  • Chipset: NXP IW610G

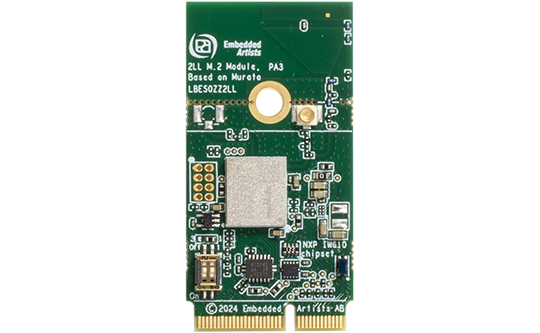

Image of 2LL M.2 Module

We have partnered with Murata to design the 2LL M.2 module, suitable for evaluation, integration and ease-of-use.

You get started immediately by following our getting started guide:

Our integration guide help you integrate an M.2 module in your next embedded design. It for example contains general information about the M.2 standard and reference schematics

Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.

For full specification on 2LL module (LBES0ZZ2LL) see Murata’s 2LL product page and 2LL datasheet.

Module
Murata moduleLBES0ZZ2LL, also known as Murata 2LL
ChipsetNXP IW610G
WLAN
Standards802.11a/b/g/n/ac/ax SISO HE20/MCS9, Wi-Fi 6
NetworkAP and STA dual mode
Frequency2.4 GHz & 5 GHz bands
Data rates114.7 Mbps
Host interfaceSDIO 3.0, SDR25@50MHz, SDR50@100MHz, SDR104@208MHz, DDR50@50MHz
Bluetooth
Standards5.4 BR/EDR/LE, 2MPHY
Power ClassClass 1.5
Host interface4-wire UART@4MBaud
Audio interfacePCM for audio
IEEE802.15.4
Host interfaceSPI
Powering
Supply voltage3.3V (3.0-3.6V)
Receive mode current (WLAN)TBD mA typical
Transmit mode current (WLAN)TBD mA typical
Mechnical
M.2 standardType 2230-D5-E
Width 22 mm, length 30mm, component height 1.5 mm and E-key connector
Measurements22x30 mm without trace antenna, 22x44 mm with trace antenna
Weight1.5 gram
Temperature
-40 to +85 degrees Celsius
Product Classification and Status
Integration board; Sampling
Flyers and specifications
2LL M.2 Datasheet
LBES0ZZ2LL Product page at Murata
Generic M.2 module 3D-models
Documentation and guides
Getting started with M.2 modules - iMX 6/7/8/9
Integration guide
Conformity
General product compliance declarations
