3.2 inch QVGA LCD Color Display

  • Resolution: 240 x 320 pixels
  • TFT display
  • SPI-like interface

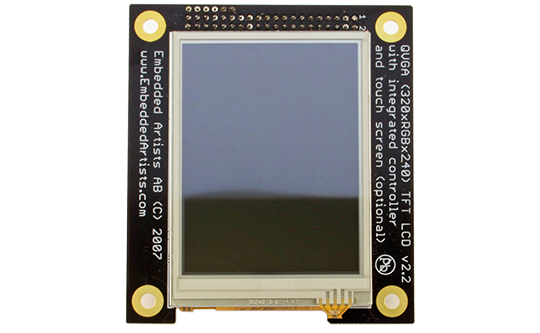

Image of 3.2 inch QVGA LCD Color Display

The 3.2 inch QVGA LCD Display adds graphics capabilities to your Developer's Kit

QVGA LCD Display
8-bit or 16-bit parallel interface. Only occupies 2 addresses (i.e., one address pin).
or serial 8-bit (SPI-like) interface (max 10 MHz clock).
Diagonal size: 3.2 inch
Display technology: TFT
Display mode: Transmissive
No of pixels: 240xRGBx320 (QVGA size)
Supply voltage: 2.5-3.3V
White LED backlight, with PWM control
View area: 48.6 x 64.8 mm
Dot size: 0.2025 x 0.2025 mm
Operating temperature: -20 to + 70 degrees Celsius
No of colors: 262K (if 18-bit mode), 65k (if 16-bit mode)
2x20 pin list (100 mil spacing) is required to interface the module
93x83 mm module size
Board includes TSC2046 touch screen controller (from TI) with SPI interface
Flyers and specifications
QVGA LCD schematics
Documentation and guides
3.2 inch QVGA LCD User's Guide
