2EL M.2 Module

Dual Band Wi-Fi 4, 802.11a/b/g/n/ac/ax + Bluetooth 5.2 + IEEE802.15.4 Module

Out of stock

LOADING
  • Wi-Fi 6, 802.11 a/b/g/n/ac/ax
  • Bluetooth 5.2 BR/EDR/LE
  • IEEE802.15.4
  • SDIO 3.0 interface, SDR50@100MHz
  • Chipset: NXP IW612

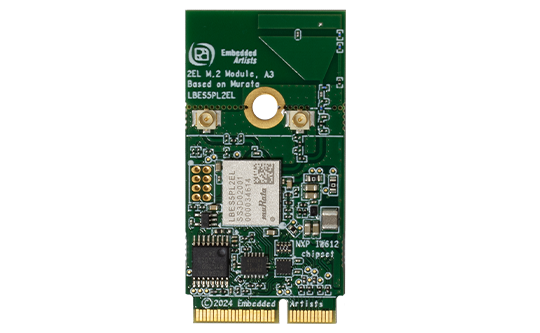

Image of 2EL M.2 Module

The 2EL M.2 module, co-developed by Embedded Artists and Murata, is designed for evaluation, integration and ease-of-use.

You get started immediately by following our getting started guide:

Our M.2 Primer Package contains general information about the M.2 standard, reference schematics and an integration guide how to integrate an M.2 module in your next embedded design.
Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.

For full specification on 2EL module (LBES5PL2EL) see Murata’s 2EL product page and 2EL datasheet.

Module
Murata moduleLBES5PL2EL, also known as Murata 2EL
ChipsetNXP IW612
WLAN
Standards802.11a/b/g/n/ac/ax SISO, Wi-Fi 6
NetworkAP and STA dual mode
Frequency2.4 GHz & 5 GHz bands
Data ratesTBD Mbps
Host interfaceSDIO 3.0, SDR50@100MHz, DDR50@50MHz
Bluetooth
Standards5.2 BR/EDR/LE 3MPHY
Power ClassClass 1
Host interface4-wire UART@3MBaud
Audio interfacePCM for audio
IEEE802.15.4
Host interfaceSPI
Powering
Supply voltage3.3V (3.0-3.6V)
Receive mode current (WLAN)TBD mA typical
Transmit mode current (WLAN)TBD mA typical
Mechnical
M.2 standardType 2230-S3-E
Width 22 mm, length 30mm, component height 1.5 mm and E-key connector
Measurements22x30 mm without trace antenna, 22x44 mm with trace antenna
Weight1.5 gram
Temperature
-40 to +85 degrees Celsius
Product Classification and Status
Integration board; Volume
Flyers and specifications
LBES5PL2EL Product page at Murata
Generic M.2 module 3D-models
Documentation and guides
Getting Started with M.2 modules and iMX6/7/8 on Linux v5.10
M.2 Primer
