1YM M.2 Module

Dual Band Wi-Fi 11a/b/g/n/ac 2x2 MIMO+Bluetooth 5.2 Module
LOADING
  • 802.11a/b/g/n/ac 2x2 MIMO and BT/BLE 5.2
  • PCIe interface, in M.2 form factor (22 x 30 mm)
  • Chipset: NXP 88W8997

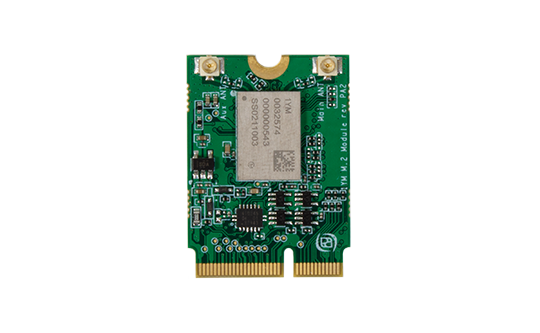

Image of 1YM M.2 Module

The 1YM M.2 module, co-developed by Embedded Artists and Murata, is designed for evaluation, integration and ease-of-use.

You get started immediately by following our getting started guides:

Note that the 1YM M.2 module is currently produced with engineering samples of the Murata LBEE5XV1YM module, which internally is based on the NXP/Marvell 88W8997 chipset. SW driver is currently only available for our iMX8M Mini uCOM board.

Our M.2 Primer Package contains general information about the M.2 standard, reference schematics and an integration guide how to integrate an M.2 module in your next embedded design.
Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.

For full specification on 1YM module (LBEE5XV1YM) see Murata’s 1YM product page and 1YM datasheet.

Module
Murata moduleLBEE5XV1YM, also known as Murata 1YM
ChipsetNXP 88W8997
WLAN
Standards802.11a/b/g/n/ac 2x2 MIMO
NetworkuAP and STA dual mode
Frequency2.4 GHz & 5 GHz bands
Data rates11, 54, 192.6, 400, 866 Mbps
Host interfacePCIe
Bluetooth
Standards5.2 BR/EDR/LE
Power ClassClass 1
Host interface4-wire UART@3MBaud
Audio interfacePCM for audio
Powering
Supply voltage3.3V (3.3-3.6V)
Receive mode current (WLAN)TBD mA typical
Transmit mode current (WLAN)TBD mA typical
Mechanical
M.2 standardType 2230-S3-E
Width 22 mm, length 30mm, component height 1.5 mm and E-key connector
Measurements22x30 mm
Weight1.5 gram
Temperature
-30 to +85 degrees Celsius
Product Classification and Status
Integration board; Sampling
Product Classification and Status
Integration board; Sampling
Flyers and specifications
LBEE5XV1YM Datasheet from Murata
1YM M.2 Datasheet
Generic M.2 module 3D-models
Documentation and guides
LBEE5XV1YM Product page
Getting Started with M2 modules and iMX6/7/8 from Linux v5.4
M.2 Primer
