- Wi-Fi 5, 802.11 a/b/g/n/ac 2x2 MIMO, RSDB
- Bluetooth 5.2 BR/EDR/LE
- PCIe interface, in M.2 form factor (22 x 30 mm)
- Chipset: Infineon/Cypress CYW54591

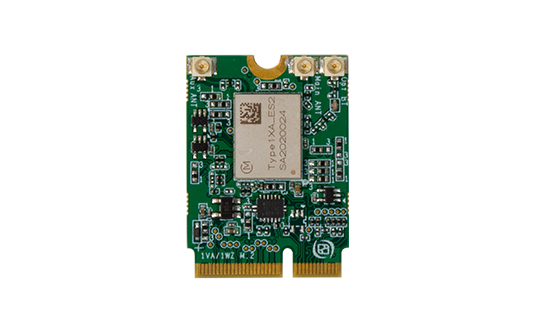

We have partnered with Murata to design the 1XA M.2 module, suitable for evaluation, integration and ease-of-use.
You get started immediately by following our getting started guide:
Our integration guide help you integrate an M.2 module in your next embedded design. It for example contains general information about the M.2 standard and reference schematics.
Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.
For full specification on 1XA module (LBEE5XV1XA) see Murata’s 1XA product page and 1XA datasheet.
Module | |
---|---|
Murata module | LBEE5XV1XA, also known as Murata 1XA |
Chipset | Infineon/Cypress CYW54591 |
WLAN | |
---|---|
Standards | 802.11a/b/g/n/ac 2x2 MIMO (5G MIMO), RSDB (Real Simultaneous Dual Band), Wi-Fi 5 |
Network | AP and STA dual mode |
Frequency | 2.4 GHz & 5 GHz bands |
Data rates | 11, 54, 144, 300, 866 Mbps |
Host interface | PCIe |
Bluetooth | |
---|---|
Standards | 5.2 BR/EDR/LE, 3MPHY |
Power Class | Class 1 |
Host interface | 4-wire UART@3MBaud |
Audio interface | PCM for audio |
Powering | |
---|---|
Supply voltage | 3.3V (3.3-3.6V) |
Receive mode current (WLAN) | TBD mA typical |
Transmit mode current (WLAN) | TBD mA typical |
Mechanical | |
---|---|
M.2 standard | Type 2230-S3-EWidth 22 mm, length 30mm (without trace antenna), component height 1.5 mm and E-key connector |
Measurements | 22x30 mm |
Weight | 1.5 gram |
Temperature | |
---|---|
-40 to +85 degrees Celsius |
Product Classification and Status | |
---|---|
Integration board; Volume |
Flyers and specifications | |
---|---|
1XA M.2 Datasheet | |
LBEE5XV1XA Product page at Murata | |
Generic M.2 module 3D-models |
Documentation and guides | |
---|---|
Getting started with M.2 modules - iMX 6/7/8/9 | |
Integration guide |
Conformity | |
---|---|
General product compliance declarations |
