Wireless connectivity on uCOM modules

Our uCOM boards have the option to add wireless connectivity.

We have partnered with Murata to offer robust, proven and well-supported Wi-Fi® and Bluetooth® connectivity solutions. With our uCOM boards you will minimize your development time and effort for implementing a world class Internet-connected product!

Overview of the Computer-on-Modules which have Wi-Fi and Bluetooth support (October 2021)

Available combinations

The table below illustrates the combinations we have created so far. More combinations are continuously added. There are combinations with application processors and with microcontrollers. There are also Wi-Fi / Bluetooth modules based on NXP chipsets and based on Infineon chipsets.

Application processors

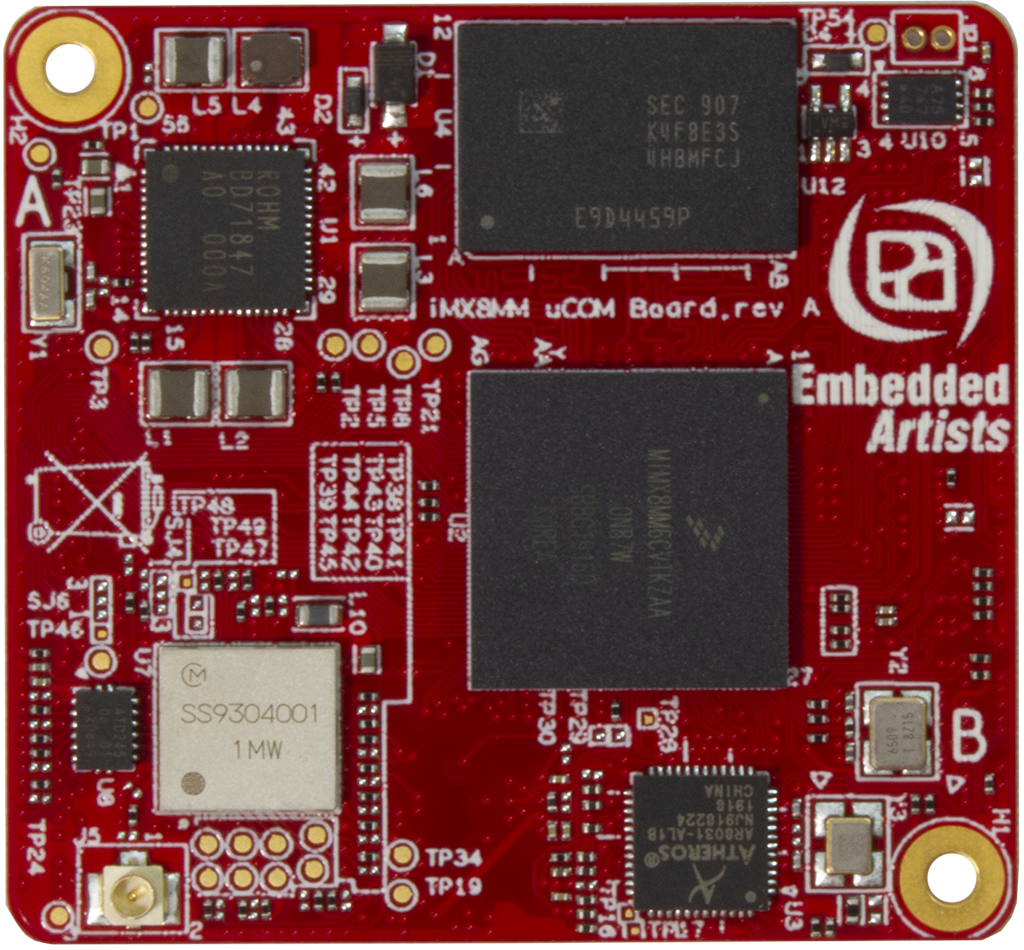

iMX8M Mini uCOM iMX8M Mini uCOM + 1MW

  • Infineon CYW43455
  • Wi-Fi 5 + Bluetooth 5.0

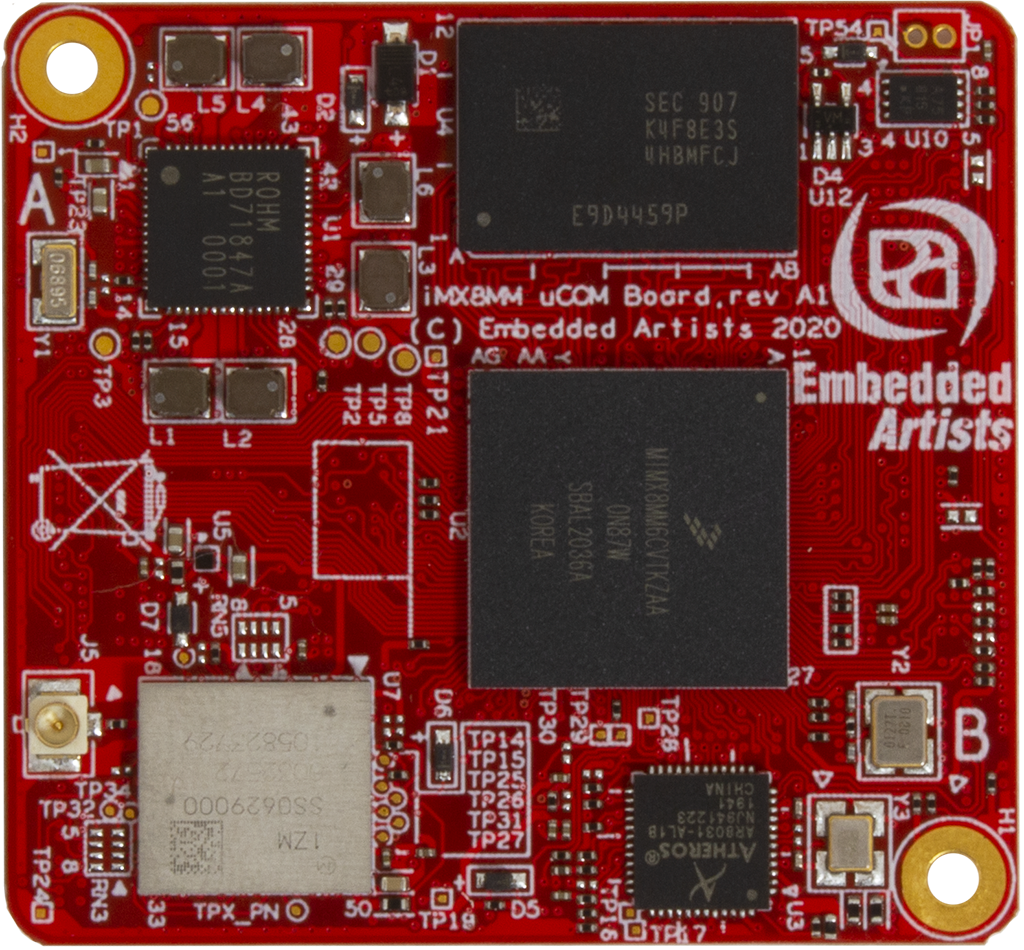

iMX8M Mini uCOM iMX8M Mini uCOM + 1ZM

  • NXP 88W8987
  • Wi-Fi 5 + Bluetooth 5.1

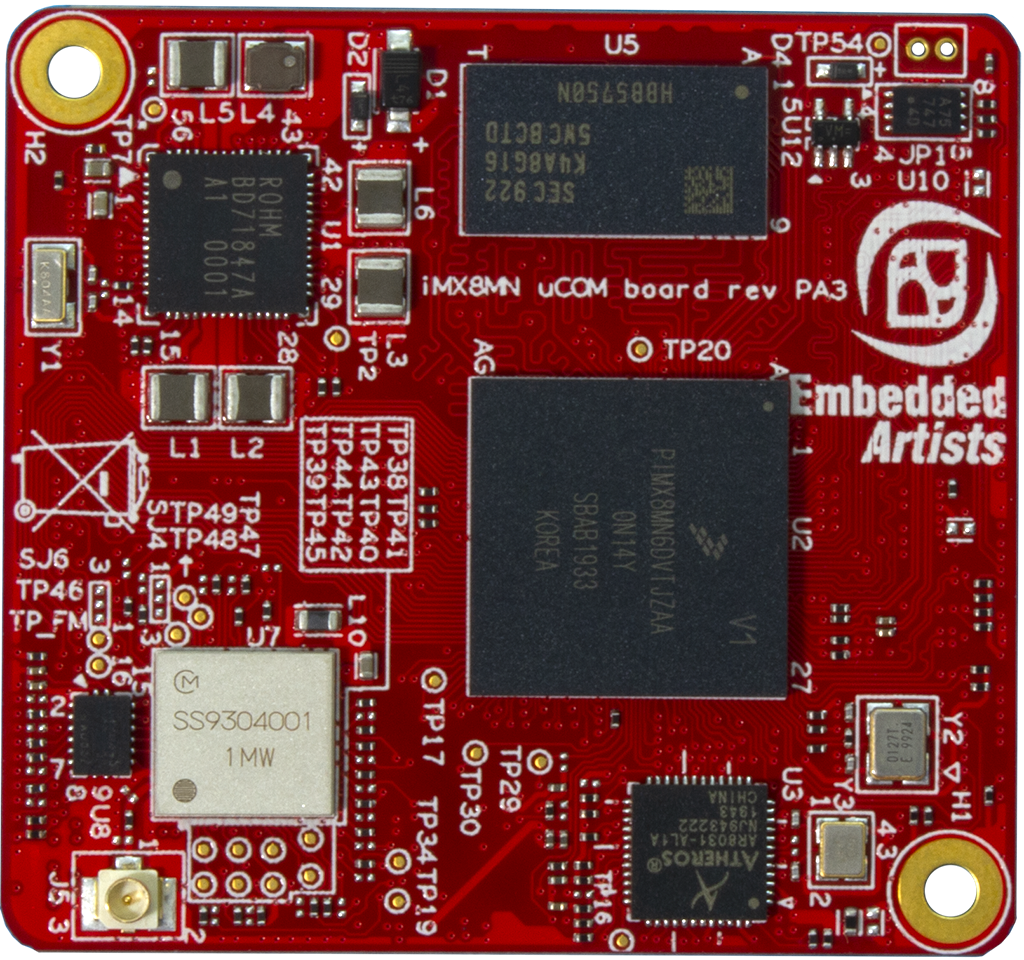

iMX8M Nano uCOM iMX8M Nano uCOM + 1MW

  • Infineon CYW43455
  • Wi-Fi 5 + Bluetooth 5.1

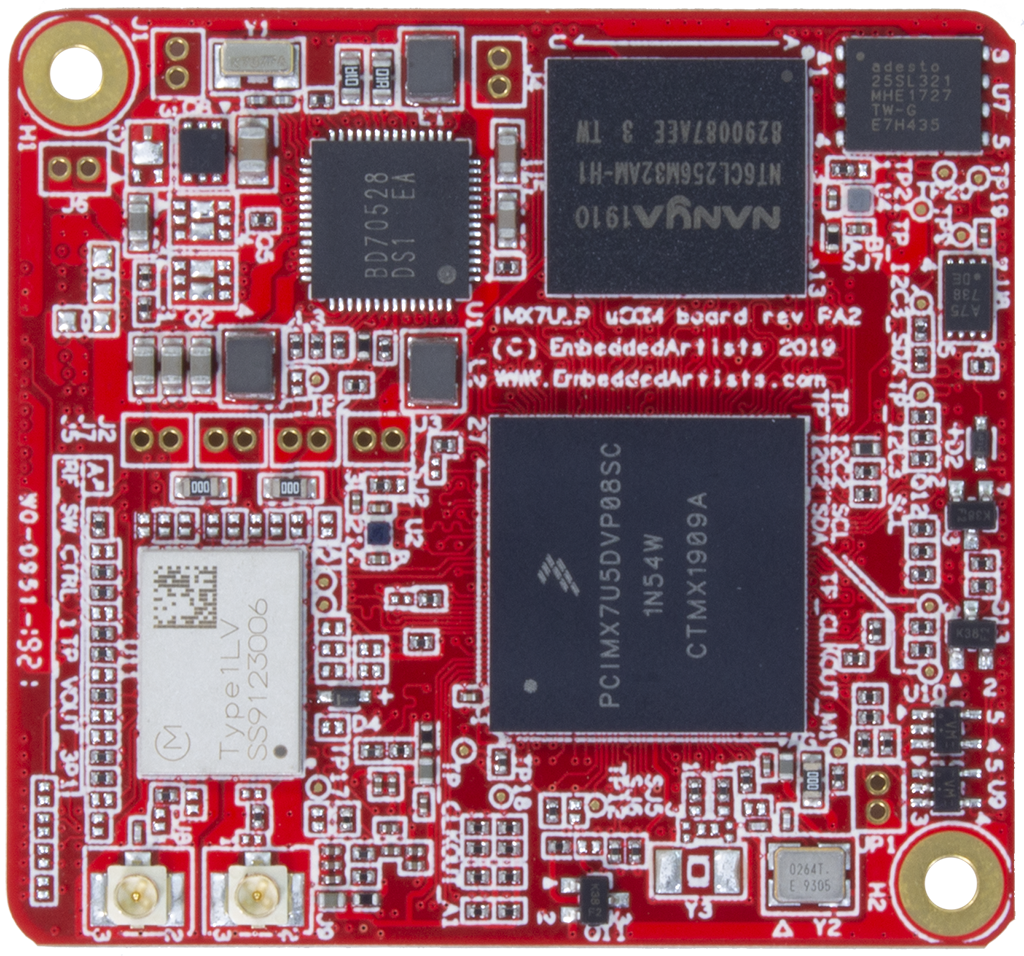

iMX7ULP uCOM iMX7ULP uCOM + 1LV

  • Infineon CYW43012
  • Wi-Fi 4 + Bluetooth 5.0
Microcontrollers

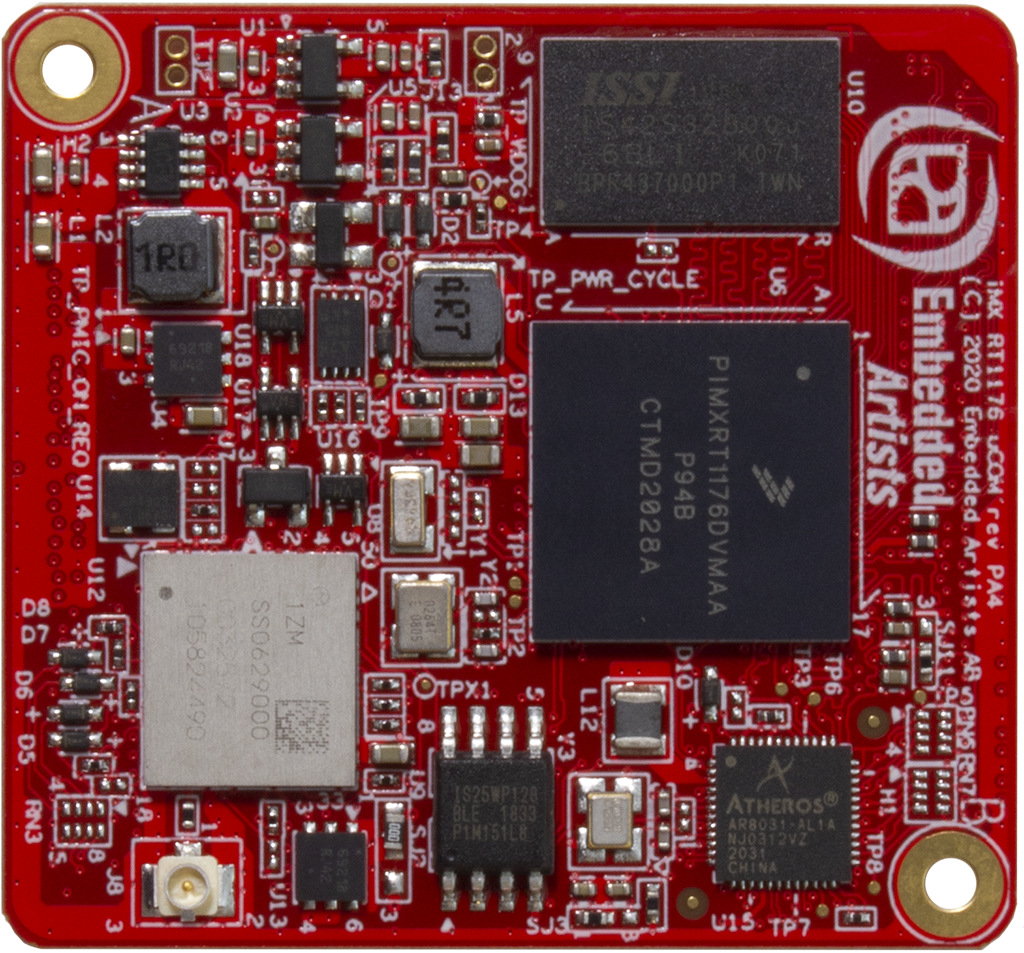

iMX RT1176 uCOM iMX RT1176 uCOM + 1XK

  • NXP IW416
  • Wi-Fi 4 + Bluetooth 5.2
iMX RT1176 uCOM iMX RT1176 uCOM + 1ZM

  • NXP 88W8987
  • Wi-Fi 5 + Bluetooth 5.1
iMX RT1176 uCOM iMX RT1166 uCOM + 1XK

  • NXP IW416
  • Wi-Fi 4 + Bluetooth 5.2
iMX RT1064 uCOM iMX RT1064 uCOM + 1XK

  • NXP IW416
  • Wi-Fi 4 + Bluetooth 5.2

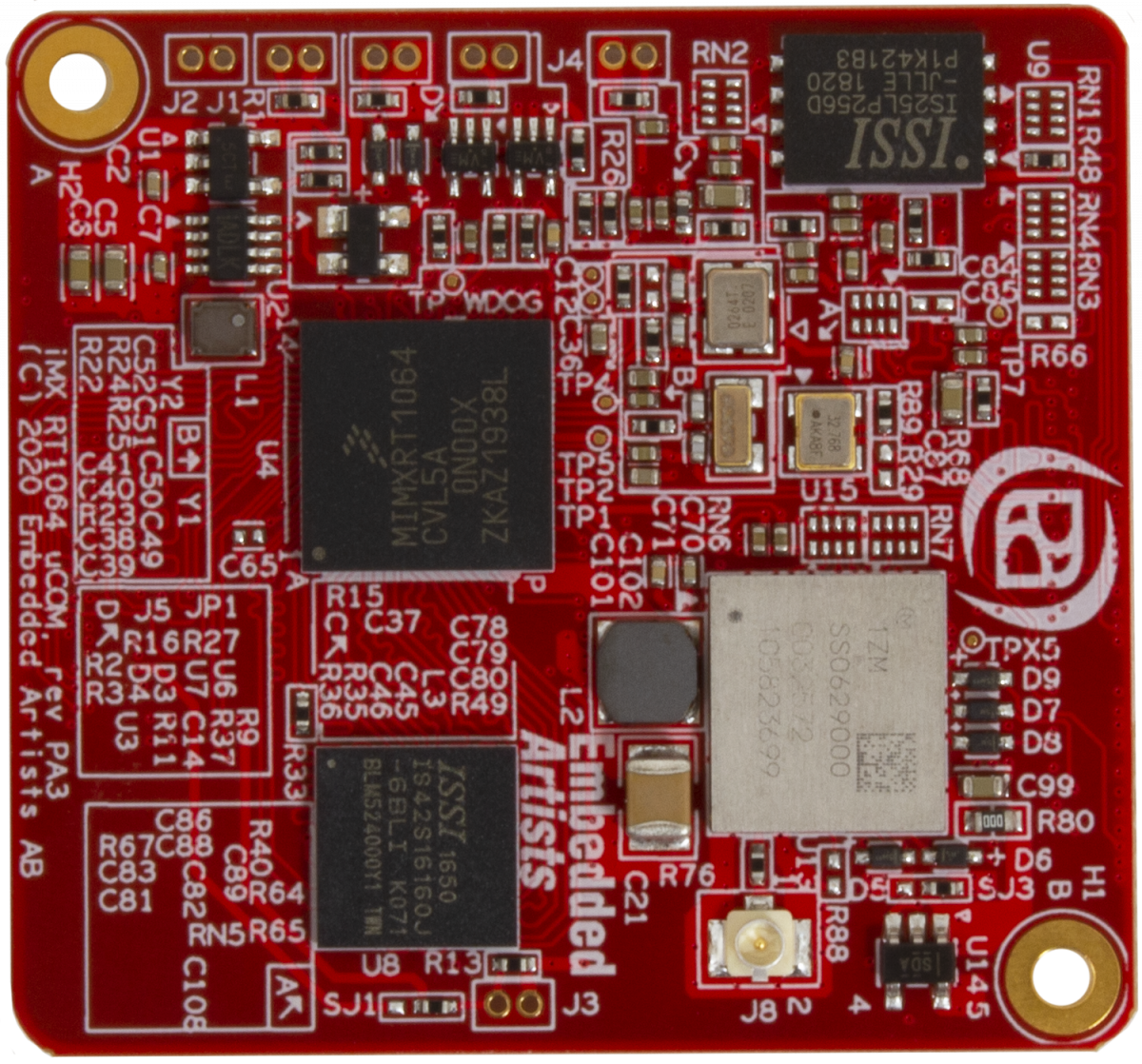

iMX RT1064 uCOM iMX RT1064 uCOM + 1ZM

  • NXP 88W8987
  • Wi-Fi 5 + Bluetooth 5.1

Wireless module combinations

If you need a specific processor plus wireless module combination, we can create it for you!

Contact us to discuss your needs.

Customized modules

If you have specific needs, where our standard modules will not work, we can help you design, develop, and manufacture a customized solution based on our proven core designs.

Contact us to discuss your needs.
