- iMX8M Mini: 4x Cortex-A53 @ 1.8 GHz & Cortex-M4 @ 400 MHz
- DEEPX DX-M1 AI Booster with 25 TOPS at 5 Watt!
- Hardware accelerator for 1080p video decoding/encoding
- PCIe Gen2, Dual USB2.0, Gigabit Ethernet-Phy
- Heterogeneous Multicore Processor (HMP)

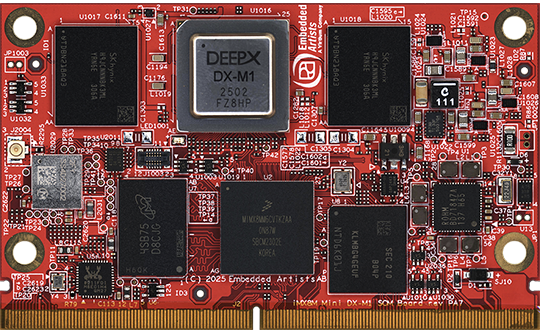

Experience a new level of intelligent performance with our new System-on-Module, seamlessly integrating the versatile power of the NXP i.MX8M Mini processor with the groundbreaking DEEPX DX-M1 AI Booster. This powerful combination delivers exceptional processing capabilities and unprecedented AI performance!
Advanced Multimedia
The iMX8M Mini DX-M1 SOM features high-end graphic capabilities with both 3D and 2D engines and hardware accelerator for 1080p video decoding and encoding.
With MIPI DSI display output, MIPI CSI camera inputs, flexible audio interfaces and comprehensive communication features, the i.MX 8M Mini is ideal for multimedia applications.
This multimedia capability is perfectly complemented by the revolutionary AI acceleration of the DX-M1.
NXP Technology
The module is based on NXP’s energy efficient i.MX 8M Mini processor which has up to 4x Cortex-A53 cores capable at running up to 1.8 GHz and one Cortex-M4 core capable at running up to 400 MHz.
Compact form factor, 82×50 mm, using the proven MXM3 connector.
DEEPX Technology
The DEEPX DX-M1 redefines the landscape of edge AI, achieving unparalleled cost-efficiency (inference/$), power-efficiency (TOPS/W), and performance efficiency (FPS/TOPS). Delivering 25 TOPS at just 5 Watts, it’s ideal for diverse applications from smart factory robotics and vision to edge computing and smart mobility.
Temperature Range
The SOM is available in industrial and commercial temperature ranges, -40 to +85 / 0 to 70 degrees Celsius, respectively. The industrial (temperature range) version is suitable for always-on applications.
| Processor Details | |
|---|---|
| Cores | NXP i.MX 8M Mini Quad-core ARM Cortex-A53 and Cortex-M4F |
| Frequency | 1.6/1.8 GHz on Cortex-A53 (industrial/commercial temperature range), 400 MHz on Cortex-M4F |
| Memory | |
|---|---|
| SDRAM | 2 GByte LPDDR4 3000 MT/s, 32-bit/2ch databus |
| NAND FLASH | 16 GByte eMMC NAND Flash for OS and bootloader |
| Graphics output | |
|---|---|
| MIPI-DSI | 4 lanes with resolution up to 1920 x 1080 at 60 Hz (1080p60) |
| Video Engine | Decode: 1080p60, Encode: 1080p60 |
| 2D/3D Graphics Engine | GCNanoUltra/GC320, OpenVG 1.1, OpenGL ES 2.0 |
| Graphics input | |
|---|---|
| Camera interface | 1x MIPI-CSI, 4 lanes |
| Communication | |
|---|---|
| Ethernet | 1x Gigabit Ethernet interface based on Realtek RTL8211FDI Ethernet PHY |
| Wi-Fi/BT | Optional Murata LBEE5HY2FY (2FY), 802.11a/b/g/n/ac/ax SISO, Wi-Fi 6E and 5.4 BR/EDR/BLE, SDIO interface, based on Infineon chipset CYW55513 |
| AI Booster | |
|---|---|
| NPU | DEEPX DX-M1 AI Booster, up to 25TOPS. Frequency up to 1 GHz |
| SDRAM | 4GByte LPDDR5 5600MT/s, 64-bit/4ch databus |
| Power | |
|---|---|
| Supply voltage | 4-5V |
| Power Consumption | 7-8 Watts peak (TBD) |
| Mechanical | |
|---|---|
| Dimensions (W x H x D) | 82 x 50 x 5 mm, EACOM form factor |
| Expansion | MXM3 format, 314 positions |
| Product Classification and Status | |
|---|---|
| Integration board; In Development/Sampling | |
