- Wi-Fi 4, 802.11 b/g/n
- SDIO 2.0 interface, SDR25@50MHz
- Chipset: NXP 88W8801

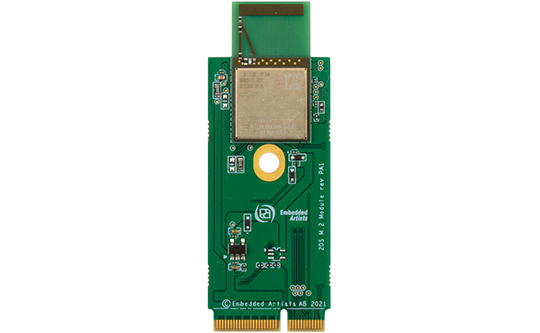

We have partnered with Murata to design the 2DS M.2 module, suitable for evaluation, integration and ease-of-use.
You get started immediately by following our getting started guide:
Our integration guide help you integrate an M.2 module in your next embedded design. It for example contains general information about the M.2 standard and reference schematics.
Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.
For full specification on 2DS module (LBWA0ZZ2DS) see Murata’s 2DS product page and 2DS datasheet.
| Module | |
|---|---|
| Murata module | LBWA0ZZ2DS, also known as Murata 2DS |
| Chipset | NXP 88W8801 |
| WLAN | |
|---|---|
| Standards | 802.11b/g/n, Wi-Fi 4 |
| Network | uAP and STA dual mode |
| Frequency | 2.4 GHz |
| Data rates | 11, 54, 72.2 Mbps |
| Host interface | SDIO 2.0, SDR25@50MHz |
| Powering | |
|---|---|
| Supply voltage | 3.3V (3.0-3.6V) |
| Receive mode current (WLAN) | 72 mA typical |
| Transmit mode current (WLAN) | 335mA typical |
| Mechnical | |
|---|---|
| M.2 standard | Type 2230-S3-EWidth 22 mm, length 30mm (actually not the actual length), component height 1.5 mm and E-key connector |
| Measurements | 22x59 mm with antenna |
| Weight | 2.0 gram |
| Temperature | |
|---|---|
| -40 to +85 degrees Celsius | |
| Product Classification and Status | |
|---|---|
| Integration board; Volume | |
| Flyers and specifications | |
|---|---|
| 2DS M.2 Datasheet | |
| LBWA0ZZ2DS Product page at Murata | |
| Generic M.2 module 3D-models | |
| Documentation and guides | |
|---|---|
| Getting started with M.2 modules - iMX 6/7/8/9 | |
| Getting started with M.2 modules - iMX RT | |
| Integration guide | |
