Wi-Fi 4, 802.11 b/g/n
Bluetooth 4.2 BR/EDR/LE
SDIO 2.0 interface, SDR25@50MHz
Chipset: Infineon/Cypress CYW4343W

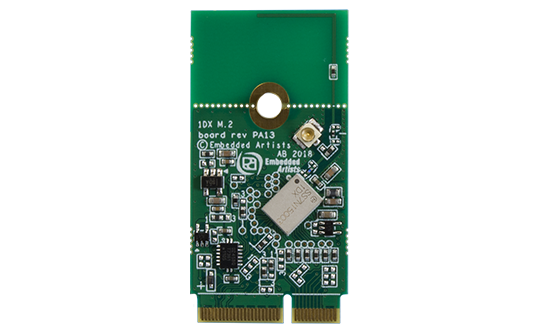

The 1DX M.2 module, co-developed by Embedded Artists and Murata, is designed for evaluation, integration and ease-of-use.

You get started immediately by following our getting started guides:

Getting Started with M.2 modules and i.MX 6/7/8 (from Linux v5.4) using our iMX Developer’s Kits V2
Getting Started with M.2 modules and i.MX 6/7/8 (up to Linux v4.14) using our iMX Developer’s Kits V2
Getting Started with M.2 modules and i.MX RT using our iMX RT1062 Developer’s Kit

Our M.2 Primer Package contains general information about the M.2 standard, reference schematics and an integration guide how to integrate an M.2 module in your next embedded design.
Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.

For full specification on 1DX module (LBEE5KL1DX) see Murata’s 1DX product page and 1DX datasheet.

Module
Murata module	LBEE5KL1DX, also known as Murata 1DX
Chipset	Infineon/Cypress CYW4343W

WLAN
Standards	802.11b/g/n, Wi-Fi 4
Network	AP and STA dual mode
Frequency	2.4GHz band
Data rates	11, 54, 65 Mbps
Host interface	SDIO 2.0, SDR25@50MHz

Bluetooth
Standards	4.2 BR/EDR/LE
Power Class	Class 1
Host interface	4-wire UART@3MBaud
Audio interface	PCM for audio

Powering
Supply voltage	3.3V (3.3-3.6V)
Receive mode current (WLAN)	47 mA typical
Transmit mode current (WLAN)	320 mA typical

Mechnical
M.2 standard	Type 2230-S3-E Width 22 mm, length 30mm (without trace antenna), component height 1.5 mm and E-key connector
Measurements	22x44 mm with trace antenna 22x30 mm without trace antenna
Weight	1.5 gram

Temperature
-30 to +70 degrees Celsius

Product Classification and Status
Integration board; Volume

Flyers and specifications
	LBEE5KL1DX Datasheet from Murata
	1DX M.2 Datasheet
	1DX M.2 Declaration of Conformity (RED)
	Generic M.2 module 3D-models

Documentation and guides
	LBEE5KL1DX Product page
	Getting Started with M2 modules and iMX6/7/8 from Linux v5.4
	Getting Started with M2 modules and iMX6/7/8 up to Linux v4.14
	Getting Started with M.2 modules and i.MX RT
	M.2 Primer
