LPC2468 OEM Board + OEM Base Board Bundle
|
| Art.no: EA-OEM-101
Buy |
|
|
|
| Price Information |
|
|
219 EUR |
|
LPC2468 OEM Board + OEM Base Board + QVGA LCD Bundle
|
| Art.no: EA-OEM-102
Buy |
|
|
|
| Price Information |
|
|
239 EUR |
|
LPC2468 OEM Board + OEM Base Board + QVGA Touch LCD Bundle
|
| Art.no: EA-OEM-103
Buy |
|
|
|
|

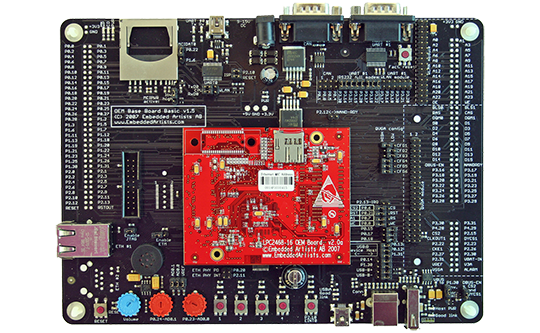

Embedded Artists' LPC2468 OEM Board (mounted on the OEM base Board Basic) lets you get up-and-running
quickly with NXP's ARM7TDMI LPC24xx microcontroller series
in general and with LPC2468 in particular. The board is only 66x80 mm and is perfect for running
uClinux with large on-board RAM and FLASH.
All processor signals are available on two 100 pos connector for easy expansion.
The board can be used in OEM applications, as well as for education purposes, experiment, and prototype projects.
uClinux Distribution
We provide a uClinux distribution for the board based on Linux 2.6 and using u-Boot 1.1.6 for booting.
The distribution is provided "as-is" and without any support. A yahoo group exist for the board for sharing experiences.
We do, however, provide a support page packed with information how to get started with uClinux, working with
drivers and developing uClinux applications.
A DVD is included (only with this bundle) with a complete Linux development environment for uClinux development, based
on VMware Player™ technology - you can develop for uClinux on your Windows PC!
| Feature |
Description |
| Processor |
NXP's ARM7TDMI LPC2468 microcontroller in BGA package
|
| Program Flash |
128 MB NAND FLASH, 4 MB NOR FLASH + 512 kB internal |
| Data Memory |
32 MB SDRAM + 96 KB internal
16-bit data bus to SDRAM |
| Ethernet |
100/10M Ethernet interface based on Micrel KSZ8001L Ethernet PHY |
| Clock Crystals |
• 12.000 MHz crystal for CPU
• 32.768 kHz crystal for RTC
|
| Dimensions |
66 x 80 mm
|
| Power |
• +3.3V powering
|
| Connectors |
• Two 100 pos Hirose expansion connector (FX8C-100), 0.6mm pitch
|
| Other |
• ISP1301 chip of USB-OTG
• 256 Kbit I2C E2PROM for storing non-volatile parameters
• Buffered 16-bit databus
|
|
| Feature |
Description |
| Connectors |
• Two 100 pos, 0.6mm pitch Hirose FX8C-100 connectors for OEM Board
• Ethernet connector (RJ45)
• MMC/SD interface & connector
• JTAG connector
• Pads for ETM connector
|
| Interfaces |
• USB OTG interface & connector
• USB device interface & connector
• USB host interface & connector
• Full modem RS232 on UART #1
• CAN interface & connector
|
| Power |
• Power supply, either via USB or external 9-15V DC
• 0.3F capacitor backup for RTC
|
| Expansion |
• Color QVGA LCD expansion connector (serial and parallel interface options)
|
| Other |
• 5 push-button keys (4 via I2C)
• 5 LEDs (via I2C)
• 2 Analog inputs
• USB-to-serial bridge on UART #0, and ISP functionality
• Reset push-button and LED
• Speaker output on v1.5 of OEM Base Board
• All OEM Board signals available on expansion connector/pads
• 240x150 mm in size
|
|
In order to ease the development of and experiments with application programs our boards
are delivered with a lot of software/sample applications.
-
Pre-emptive Real-Time Operating System (RTOS) - the RTOS is
delivered as a binary package together with some sample applications
that illustrate different functionalities of the RTOS.
Can be used for non-commercial applications.
-
SDRAM initialization example.
-
Sample applications.
QuickStart Build Environment
In order to be able to build the sample applications (and your own applications) you get access to
Embedded Artists' build environment. It is based on GCC
v3.4.3 + newlib as the compiler.
Embedded Artists' LPC2468 OEM Board is not just another prototyping board.
The many unique features and the extensive support package provided gives you a head start before your competitors.
-
Get up-and-running quickly
- Start developing/experimenting on day 1
- Embedded Artists's QuickStart Build Environment included (compiler, linker, make, editor, etc.)
– based on GCC
- Many sample applications included
- Extensive documentation
- Real-time operating system (RTOS) included
- Board support package (BSP) included
- Simple and automatic program download (ISP)
The LPC2468 OEM Board is very low cost and can be used for prototyping/development as well
as for OEM production. Modifications for OEM applications can easily be done for volume customers.
Contact Embedded Artists for further information about design and production services.
You will likely be surprised at our competitive prices!
This section contains demo software from our parners. The demo applications demonstrates different functions,
i.e., middleware that have been implemented on Embedded Artists boards.
| Demo Decription |
Download |
Embedded USB Host Stack with various sample applications, from Thesycon.
- HID Demo
- Mass Storage Demo
- Test Application |
usbh_lpc2468_embart_demo.exe
Direct link to Thesycon
|
LAN Webserver Reference Application, from Sevenstax.
The demonstration software includes a full featured test bench, demonstrating several network protocols
like TCP, UDP, ICMP (ping), Webserver downloads, HTTP Authentication, Auto-IP, Multicast DNS, DNS
Service-Discovery, NetBIOS Name Service, Telnet, TFTP and more.
|
NXP_LLV5_EA.hex
Reference Manual for Demo
Direct link to Sevenstax
|
|
|
