2FY M.2 Module

Tri-Band Wi-Fi 6/6E, 802.11a/b/g/n/ac/ax 1x1 SISO + Bluetooth 5.4
LOADING
  • Wi-Fi 6/6E, 802.11 a/b/g/n/ac/ax
  • Bluetooth 5.4 BR/EDR/LE
  • SDIO 3.0 interface, SDR50@80MHz, DDR50@40MHz
  • Chipset: Infineon CYW55513

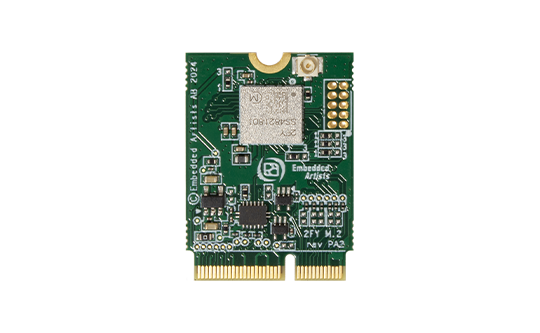

Image of 2FY M.2 Module

We have partnered with Murata to design the 2FY M.2 module, suitable for evaluation, integration and ease-of-use.

You get started immediately by following our getting started guide:

Our integration guide help you integrate an M.2 module in your next embedded design. It for example contains general information about the M.2 standard and reference schematics

Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.

For full specification on 2FY module (LBEE5HY2FY) see Murata’s 2FY product page and 2FY datasheet.

Module
Murata moduleLBEE5HY2FY, also known as Murata 2FY
ChipsetInfineon CYW55513
WLAN
Standards802.11a/b/g/n/ac/ax 1x1 SISO, Wi-Fi 6/6E
NetworkAP and STA dual mode
Frequency2.4/5/6GHz Tri-band
Data rates143 Mbps
Host interfaceSDIO 3.0, SDR50@80MHz, DDR50@40MHz
Bluetooth
Standards5.4 BR/EDR/LE, 2Mbps PHY
Power ClassClass 1
Host interface4-wire UART@3MBaud
Audio interfacePCM for audio
Powering
Supply voltage3.3V (3.0-3.6V)
Receive mode current (WLAN)50 mA typical
Transmit mode current (WLAN)490 mA typical
Mechnical
M.2 standardType 2230-S3-E
Width 22 mm, length 30mm, top side component height 1.5 mm and E-key connector
Measurements22x30 mm without trace antenna, 22x44 mm with trace antenna
Weight1.5 gram
Temperature
-40 to +85 degrees Celsius (specification: -30 to +85 degrees Celsius)
Product Classification and Status
Integration board; Sampling
Flyers and specifications
2FY M.2 Datasheet
LBEE5HY2FY Product page at Murata
Generic M.2 module 3D-models
Documentation and guides
Getting started with M.2 modules - iMX 6/7/8/9
Integration guide
Conformity
General product compliance declarations
