- Wi-Fi 6E, 802.11 a/b/g/n/ac/ax 2x2 MIMO
- Bluetooth 5.2 BR/EDR/LE
- PCIe interface, in M.2 form factor (22 x 44 mm)
- Chipset: Infineon/Cypress CYW55573

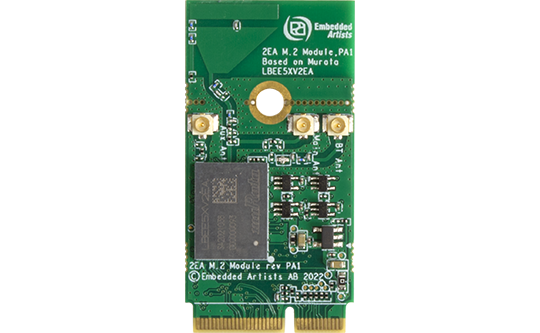

The 2EA M.2 module, co-developed by Embedded Artists and Murata, is designed for evaluation, integration and ease-of-use.
You get started immediately by following our getting started guide:
Our integration guide help you integrate an M.2 module in your next embedded design. It for example contains general information about the M.2 standard and reference schematics.
Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.
For full specification on 2EA module (LBEE5XV2EA) see Murata’s 2EA product page (url not yet working) and 2EA datasheet (url not yet working).
Module | |
---|---|
Murata module | LBEE5XV2EA, also known as Murata 2EA |
Chipset | Infineon/Cypress CYW55573 |
WLAN | |
---|---|
Standards | 802.11a/b/g/n/ac/ax 2x2 MIMO, Wi-Fi 6E |
Network | AP and STA dual mode |
Frequency | 2.4 GHz, 5 GHz bands & 6 GHz bands |
Data rates | 11, 54, 144, 300, 867 Mbps |
Host interface | PCIe (or strapped for SDIO 3.0, SDR104@208MHz) |
Bluetooth | |
---|---|
Standards | 5.2 BR/EDR/LE |
Power Class | Class 2 |
Host interface | 4-wire UART@3MBaud |
Audio interface | PCM for audio |
Powering | |
---|---|
Supply voltage | 3.3V (3.3-3.6V) |
Receive mode current (WLAN) | TBD mA typical |
Transmit mode current (WLAN) | TBD mA typical |
Mechanical | |
---|---|
M.2 standard | Type 2230-S3-EWidth 22 mm, length 30mm (without trace antenna), component height 1.5 mm and E-key connector |
Measurements | 22x30 mm without trace antenna, 22x44 mm with trace antenna |
Weight | 1.5 gram |
Temperature | |
---|---|
TBD degrees Celsius |
Product Classification and Status | |
---|---|
Integration board; Sampling |
Flyers and specifications | |
---|---|
2EA M.2 Datasheet | |
LBEE5XV2EA Product page at Murata (url not yet working) | |
Generic M.2 module 3D-models |
Documentation and guides | |
---|---|
Getting started with M.2 modules - iMX 6/7/8 | |
Integration guide |
Conformity | |
---|---|
General product compliance declarations |
