- Wi-Fi 6, 802.11 a/b/g/n/ac/ax
- Bluetooth 5.3 BR/EDR/LE
- SDIO 3.0 interface, SDR50@100MHz
- Chipset: NXP IW611

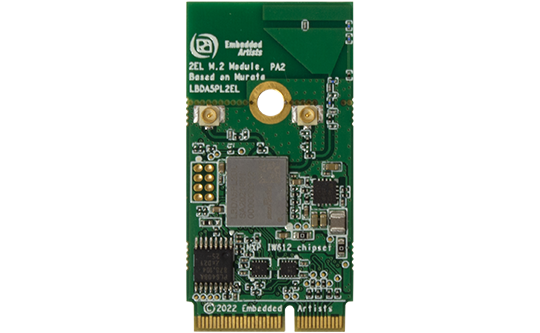

We have partnered with Murata to design the 2DL M.2 module, suitable for evaluation, integration and ease-of-use.
You get started immediately by following our getting started guide:
Our integration guide help you integrate an M.2 module in your next embedded design. It for example contains general information about the M.2 standard and reference schematics
Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.
For full specification on 2DL module (LBEE5PL2DL) see Murata’s 2DL product page and 2DL datasheet.
| Module | |
|---|---|
| Murata module | LBEE5PL2DL, also known as Murata 2DL |
| Chipset | NXP IW611 |
| WLAN | |
|---|---|
| Standards | 802.11a/b/g/n/ac/ax SISO, Wi-Fi 6 |
| Network | AP and STA dual mode |
| Frequency | 2.4 GHz & 5 GHz bands |
| Data rates | 601 Mbps |
| Host interface | SDIO 3.0, SDR50@100MHz, DDR50@50MHz |
| Bluetooth | |
|---|---|
| Standards | 5.3 BR/EDR/LE, 2MPHY |
| Power Class | Class 1.5 |
| Host interface | 4-wire UART@3MBaud |
| Audio interface | PCM for audio |
| Powering | |
|---|---|
| Supply voltage | 3.3V (3.0-3.6V) |
| Receive mode current (WLAN) | TBD mA typical |
| Transmit mode current (WLAN) | TBD mA typical |
| Mechnical | |
|---|---|
| M.2 standard | Type 2230-D5-EWidth 22 mm, length 30mm, component height 1.5 mm and E-key connector |
| Measurements | 22x30 mm without trace antenna, 22x44 mm with trace antenna |
| Weight | 1.5 gram |
| Temperature | |
|---|---|
| -40 to +85 degrees Celsius | |
| Product Classification and Status | |
|---|---|
| Integration board; Sampling | |
| Flyers and specifications | |
|---|---|
| 2EL / 2DL M.2 Datasheet | |
| LBEE5PL2DL Product page at Murata | |
| Generic M.2 module 3D-models | |
| Documentation and guides | |
|---|---|
| Getting started with M.2 modules - iMX 6/7/8/9 | |
| Integration guide | |
