2BZ M.2 Module

Dual Band Wi-Fi 5, 802.11 a/b/g/n/ac 2x2 MIMO + Bluetooth 5.2 Module
LOADING
  • Wi-Fi 5, 802.11 a/b/g/n/ac 2x2 MIMO
  • Bluetooth 5.2 BR/EDR/LE
  • SDIO 3.0 interface, SDR104@208MHz
  • Chipset: Infineon/Cypress CYW54590

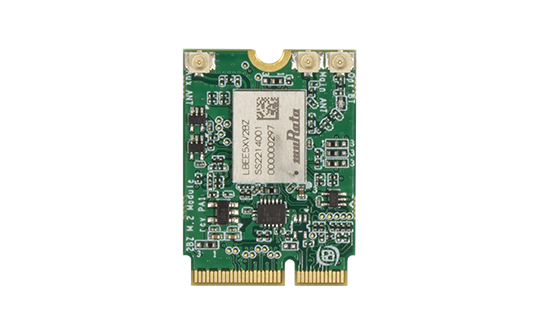

Image of 2BZ M.2 Module

We have partnered with Murata to design the 2BZ M.2 module, suitable for evaluation, integration and ease-of-use.

You get started immediately by following our getting started guide:

Our integration guide help you integrate an M.2 module in your next embedded design. It for example contains general information about the M.2 standard and reference schematics.

Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.

For full specification on 2BZ module (LBEE5XV2BZ) see Murata’s 2BZ product page and 2BZ datasheet.

Module
Murata moduleLBEE5XV2BZ, also known as Murata 2BZ
ChipsetInfineon/Cypress CYW54590
WLAN
Standards802.11a/b/g/n/ac 2x2 MIMO (5G MIMO), Wi-Fi 5
NetworkAP and STA dual mode
Frequency2.4 GHz & 5 GHz bands
Data rates11, 54, 144, 300, 866 Mbps
Host interfaceSDIO 3.0, SDR104@208MHz
Bluetooth
Standards5.2 BR/EDR/LE, 3MPHY
Power ClassClass 2
Host interface4-wire UART@3MBaud
Audio interfacePCM for audio
Powering
Supply voltage3.3V (3.3-3.6V)
Receive mode current (WLAN)250 mA typical
Transmit mode current (WLAN)540 mA typical
Mechanical
M.2 standardType 2230-S3-E
Width 22 mm, length 30mm (without trace antenna), component height 1.5 mm and E-key connector
Measurements22x30 mm
Weight1.5 gram
Temperature
-40 to +85 degrees Celsius
Product Classification and Status
Integration board; Volume
Flyers and specifications
2BZ M.2 Datasheet
LBEE5XV2BZ Product page at Murata
Generic M.2 module 3D-models
Documentation and guides
Getting started with M.2 modules - iMX 6/7/8/9
Integration guide
Conformity
General product compliance declarations
