1MW M.2 Module

Dual Band Wi-Fi 11a/b/g/n/ac with Bluetooth 5.0 Module

from: 15€

LOADING
  • 802.11 a/b/g/n/ac and BT/BLE 5.0
  • SDIO 3.0 interface, SDR100@200MHz
  • 22 x 44 mm with integrated trace antenna

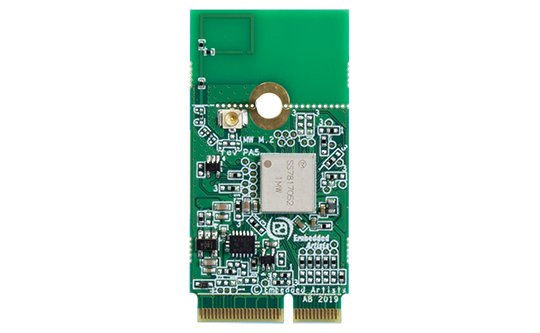

Image of 1MW M.2 Module

The 1MW M.2 module, co-developed by Embedded Artists and Murata, are designed for evaluation, integration and ease-of-use.

Our M.2 Primer Package contains general information about the M.2 standard, reference schematics and an integration guide how to integrate an M.2 module in your next embedded design.
Murata has a specific landing page presenting our support for NXP’s i.MX application processor family.

For full specification on 1MW module (LBEE5HY1MW) see Murata’s 1MW product page and 1MW datasheet.

Module
Murata moduleLBEE5HY1MW, also known as Murata 1MW
ChipsetCypress CYW43455
WLAN
Standards802.11 a/b/g/n/ac
NetworkAP and STA dual mode
Frequency2.4 GHz & 5 GHz bands
Data rates11, 54, 65, 150, 433 Mbps
Host interfaceSDIO 3.0, SDR100@200MHz, DDR50@50MHz
Bluetooth
Standards5.0 BR/EDR/LE
Power ClassClass 1
Host interface4-wire UART@3MBaud
Audio interfacePCM for audio
Powering
Supply voltage3.3V (3.2-3.6V)
Receive mode current (WLAN)130 mA typical
Transmit mode current (WLAN)420 mA typical
Mechnical
M.2 standardType 2230-S3-E
Width 22 mm, length 30mm (without trace antenna), component height 1.5 mm and E-key connector
Measurements22x44 mm with trace antenna
22x30 mm without trace antenna
Weight1.5 gram
Temperature
-20 to +75 degrees Celsius
Product Classification and Status
Integration board; Sampling
Flyers and specifications
LBEE5HY1MW Datasheet from Murata
1MW M.2 Datasheet
Generic M.2 module 3D-models
Documentation and guides
LBEE5HY1MW Product page
Getting Started with M.2 modules and i.MX 6/7/8
Getting Started with M.2 modules and i.MX RT
M.2 Primer
